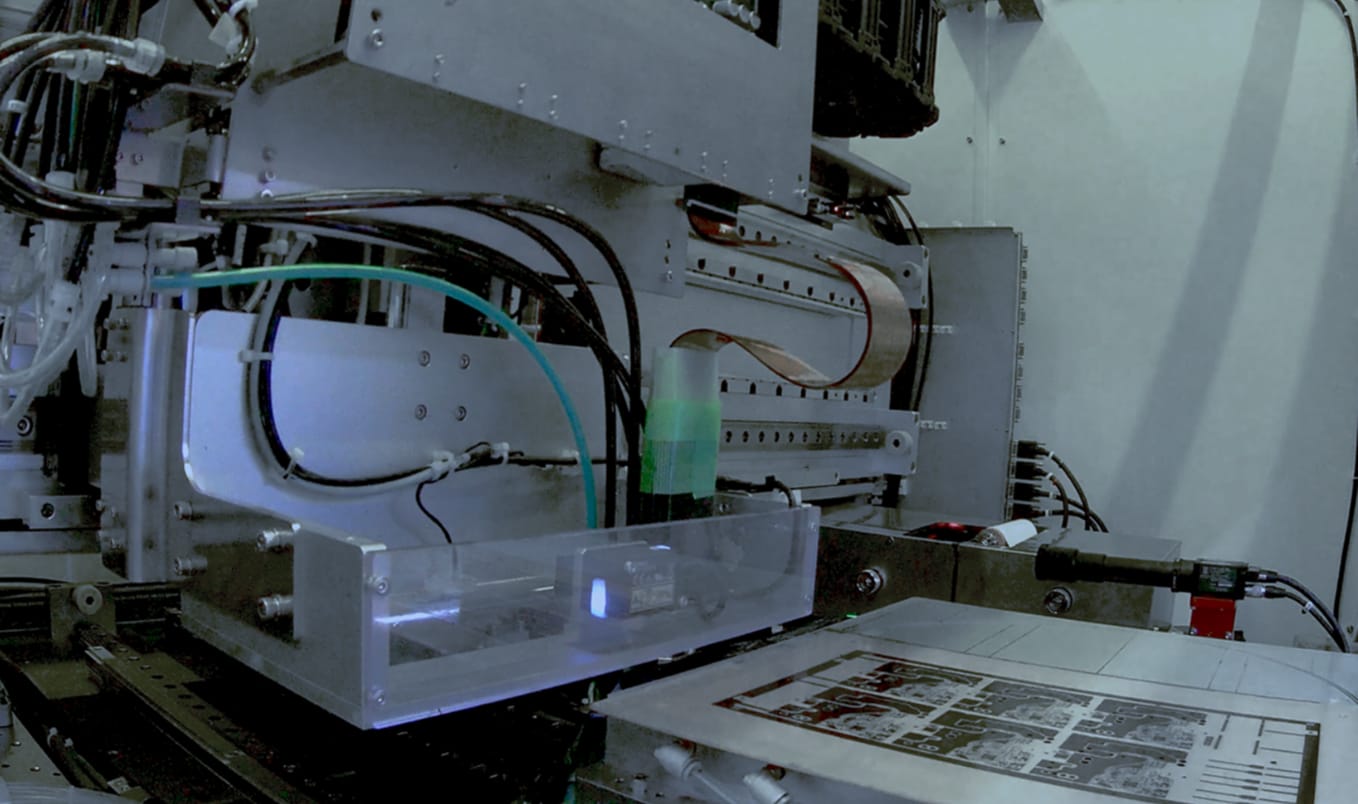

Multilayer PCB Manufacturing Solutions
Elephantech provides manufacturing solutions for multilayer PCBs, the backbone of modern electronics devices.
As a sustainable alternative to conventional etched boards, our SustainaCircuits general-purpose multilayer PCBs combine high performance with a significantly reduced environmental impact, setting a new standard for the industry.
Demonstrated Specifications
- PCB type
- Multilayer plated through-hole board
- Base material
- FR-4
- Min. L/S
- 50/50 μm
- Min. VIA diameter
- Φ0.20 mm
- VIA types
- PTH, IVH, LVH*
- Cu pattern thicknes
- 3–120 µm
- No. of layers
- No specific technical limitations
- Size
- No specific technical limitations
- Surface treatment
- No specific technical limitations
*LVH currently under verification

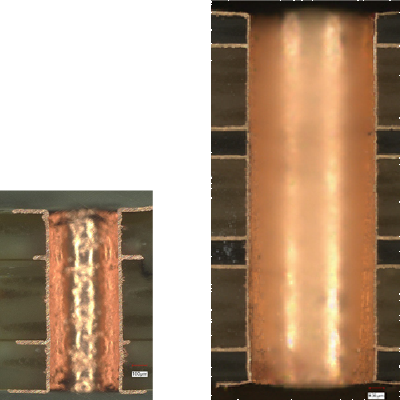

Microscopic cross-sections of 4-layer and 8-layer VIAs
Seamless Integration

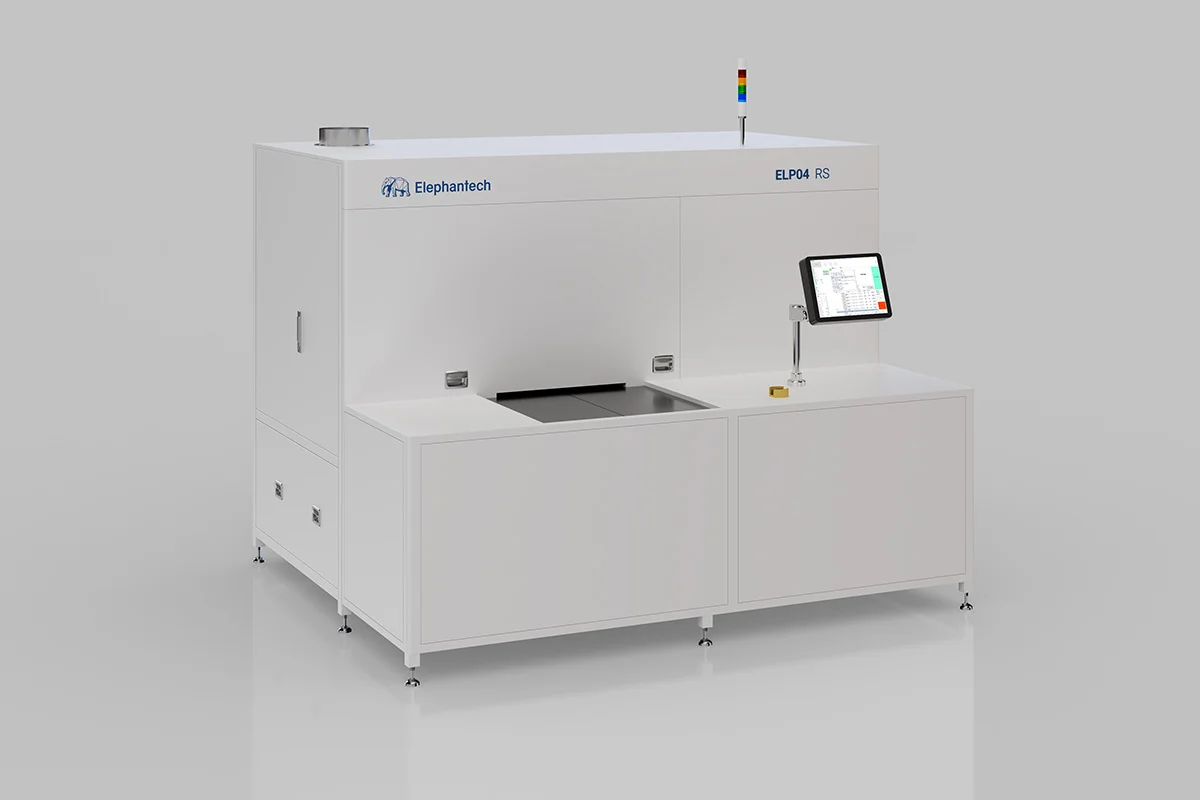

By integrating Elephantech's inkjet equipment and ink into existing production lines, manufacturers can begin producing SustainaCircuits PCBs. Only the core step is upgraded, allowing downstream processes to remain unchanged for minimal disruption and smooth adoption.
