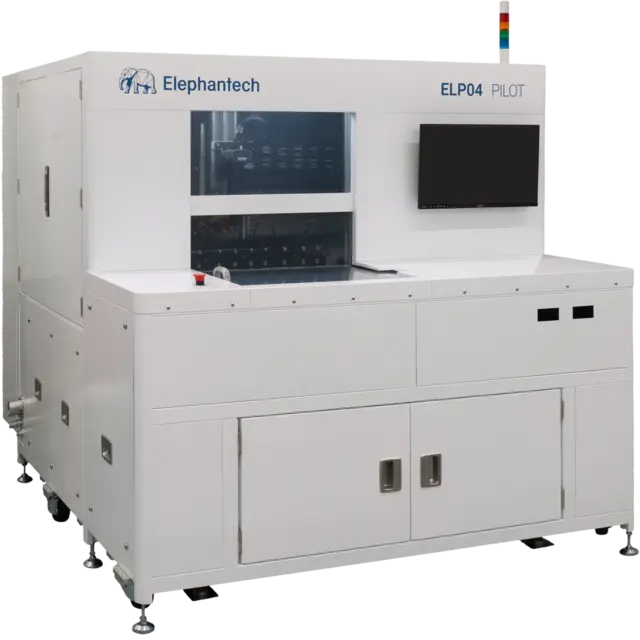

Inkjet application development ELP04 PILOT
A compact, high-precision inkjet printing model engineered to support diverse base materials and use cases.
Its versatility and robust performance make it an ideal solution for prototyping, process development and technical validation.
Features
- Equipped with Elephantech's proprietary AI model, NeuralJet, delivering μm-level precision
- Exceptional adaptability across a wide range of base materials
- High operational stability and easy maintenance optimized for first-time users
Specifications
| Model | ELP04 PILOT |
|---|---|
| Max. Panel Size | 2000 × 2000 mm |
| Printing Speed | Up to 1,000 mm/s |
| Inkdrop Placement Precision | σ < 1 μm |
| Printhead | EPSON PrecisionCore D3000-U1R |
| No. of Nozzles | 11,808 - 59,040 (2,952 nozzle/head × 4-20 heads) *Dual ink system available |
| Ink Types | Aqueous, UV, solvent |
Applications
-
HDI microvia formation
-
Wafer-level interconnection
-
TGV Metallization
-
PCB pattern formation
